1

Twin-panel safety cover

Protect against panel ageing in everyday use with interior sacrificial disk, eliminating risk of contamination.
2

High-precision spindle

Diverse clamping inserts can be used, giving you the highest concentricity
3

Separate cockpit control unit

Control unit comes with simple height and position adjustment for maximum convenience. Touch operation allows easy configuration using Pilot software with unique features including: - intuitive graphical user interface - dynamic crosshair for precision - measurement in real time without stop delay for presetting - high-precision adapter system with automatic clamping - fault tracking
4

Ergonomic operating elements

Daily users of presetting and measuring machines appreciate features such as the single-hand operating device
5

Robust body

Sturdy build able to withstand shop-floor conditions. Fork recess allows easy transport and flexible installation

toolBalancer

Ergonomic design meets typical ZOLLER efficiency for highest precision

PDF Download

Download your product brochure

Thank you for submitting your details. Please find the following download link for your product brochure.

Request more information
Twin-panel safety cover Protect against panel ageing in everyday use with interior sacrificial disk, eliminating risk of contamination.
High-precision spindle Diverse clamping inserts can be used, giving you the highest concentricity
Separate cockpit control unit Control unit comes with simple height and position adjustment for maximum convenience. Touch operation allows easy configuration using Pilot software with unique features including: - intuitive graphical user interface - dynamic crosshair for precision - measurement in real time without stop delay for presetting - high-precision adapter system with automatic clamping - fault tracking
Ergonomic operating elements Daily users of presetting and measuring machines appreciate features such as the single-hand operating device
Robust body Sturdy build able to withstand shop-floor conditions. Fork recess allows easy transport and flexible installation

Overview

Finely balanced tools are imperative for modern cutting machines operating at high rotational speeds – and that’s where ZOLLER’s toolBalancer delivers.

The toolBalancer’s asymmetrical design results in asymmetrical mass distribution with two-point contact and a pressure element means everything comes from the centre for the highest precision. Offering the highest precision for tool holders, grinding wheels and rotors, its ergonomic design allows it to be individually adapted to meet your requirements, now and into the future.

This guarantees longer, controlled, effective, fast and high-quality production, measurably decreasing your rejection rates, machine inactivity, production costs and lead times.

Together with its ergonomic design, the toolBalancer comes pre-loaded with dynamic new technological features for balancing on one plane and two planes.

Operation is at your fingertips with the 17 inch touchscreen interface loaded with ZOLLER operating software and visual insertion aid. Aids for balancing correction are in place for various weights, move weights, radial drilling, milling and axial drilling, as well as laser marking to display imbalance and corrective positioning on the tool holder.









Highlights
Technical Data
Options
ROI Calculator
  • Economical – More cutting power, less wear and tear with highly accurately balanced tools
  • Modular – Individual adaptation thanks to the modular design – the right design for every need
  • Simple – Self-explanatory operation
  • Comfortable and ergonomic – Maximum comfort with simple touchscreen operation, keyboard and mouse
Spindle speed 300-1100 rpm
Measuring accuracy < 0,5 gmm
Max. tool length 400 mm
Max. tool length optional 700 mm
Max. tool diameter 380 mm
Max. tool diameter optional 425 mm
Max. tool weight 30 kg

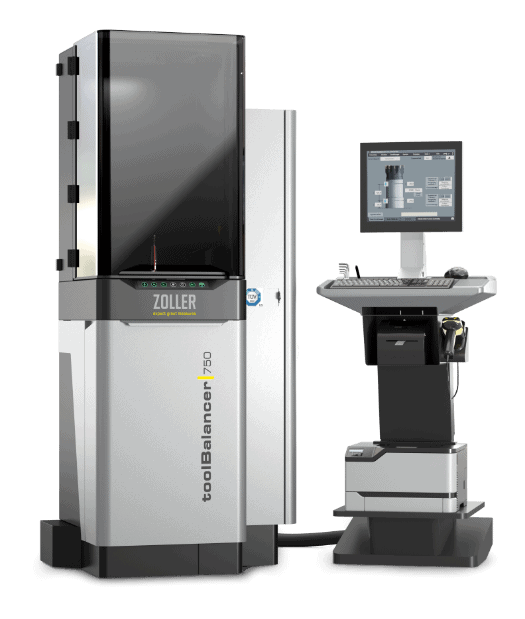

toolBalancer 750

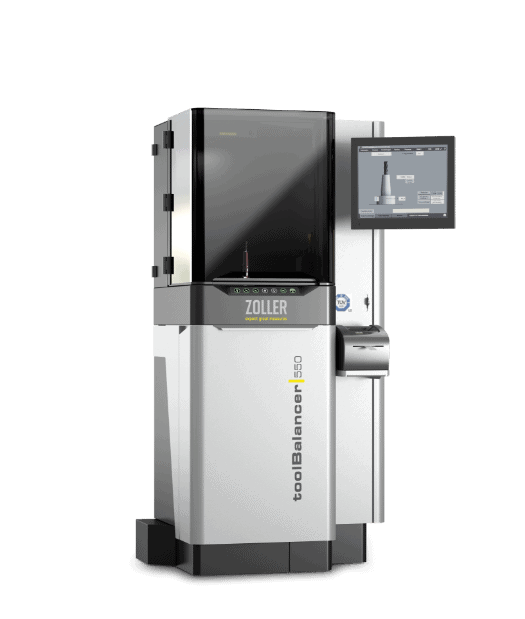

toolBalancer 550
High-precision spindle
Twin panel safety cover
Separate cockpit control unit
SK Adapter (SK 30/40/50)
HSK Adapter (32/40/50/63/80/100) - (A/C/E-B/D/F)
Polygonal Shank Coupling Adapter (C 32/40/50/63/80)

Calculate Savings

Just enter the matching values for your company to see how much you can increase your productivity.
  • Your Profitability

  • # Minutes * # CHANGES * # SHIFTS * Hourly Rate / 60 * # Machines
  • Machine Investment * 10% * # Machines
  • Your Savings
